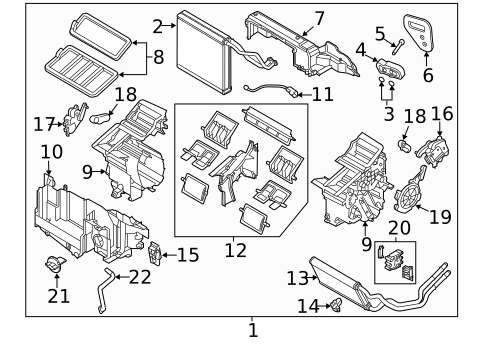

HVAC Case for 2019 Mazda CX-5
No.
Part # / Description / Price
Price
1
MSRP $1,138.86
$740.26
3
A/C Refrigerant Line O-Ring
Mazda
Mazda Notes: PARTS: Part included with AC & heater assembly.
MSRP $3.20
$2.08
MSRP $3.20
$2.08
4
Expansion Valve Mazda
Mazda Notes: PARTS: Part included with AC & heater assembly.
Description: Mazda3. With auto temp control, japan built. Without auto temp control. CX-5. Hfc 134a. 2.5L turbo, with auto ac. Mazda6. Without 1234yf. 2.2L diesel, with auto ac.
MSRP $115.91
$75.34
MSRP $115.91
$75.34
5
Expansion Valve Bolt Mazda
Mazda Notes: PARTS: Part included with AC & heater assembly.
Description: With auto temp control. With manual ac. 2.5L turbo, with auto ac. 2.2L diesel, with auto ac.
MSRP $8.29
$5.39
MSRP $8.29
$5.39
6
Expansion Valve Gasket Mazda
Mazda Notes: PARTS: Part included with AC & heater assembly.
Description: Without auto temp control. 2.5L turbo, with auto ac. 2.2L diesel, without auto ac.
MSRP $78.88
$51.27
MSRP $78.88
$51.27
11
Thermostatic Switch Mazda
Mazda Notes: PARTS: Part included with AC & heater assembly.
Description: CX-5. 2.5L turbo, with auto ac. 2.2L diesel, with auto ac.
MSRP $11.23
$7.30
MSRP $11.23
$7.30
12
Damper Assembly Mazda
Mazda Notes: PARTS: Part included with AC & heater assembly.
Description: With manual ac. Without auto temp. 2.5L non turbo without auto ac. 2.2L diesel, without auto ac.
MSRP $141.27
$91.83
MSRP $141.27
$91.83
16
Link Assembly Mazda
Mazda Notes: PARTS: Part included with AC & heater assembly.
Description: 2.5L non turbo without auto ac. actuator. 2.2L diesel, without auto ac, temperature.
MSRP $11.32
$7.36
MSRP $11.32
$7.36
17
Link Assembly Mazda
Mazda Notes: PARTS: Part included with AC & heater assembly.
Description: 2.5L non turbo without auto ac. mode. 2.2L diesel, without auto ac, mode.
MSRP $40.62
$26.40
MSRP $40.62
$26.40
18
Actuator Mazda
Mazda Notes: PARTS: Part included with AC & heater assembly.
Description: CX-5. Left. Mazda3. Mazda6. No.1. Temp, with auto air. Without atc. 2.2L diesel, with auto ac, temperature.
MSRP $97.76
$63.54
MSRP $97.76
$63.54
19
Temp Door Actuator Mazda
Mazda Notes: PARTS: Part included with AC & heater assembly.
Description: CX-5. Mazda6. Mazda3. With auto temp control, mode. 2.2L diesel, without auto ac, mode.
MSRP $100.70
$65.46
MSRP $100.70
$65.46
22
Heater Core Clip Mazda
Mazda Notes: PARTS: Part included with AC & heater assembly.
Description: With auto temp control. 2.2L diesel, with auto ac.
MSRP $14.86
$9.66
MSRP $14.86
$9.66

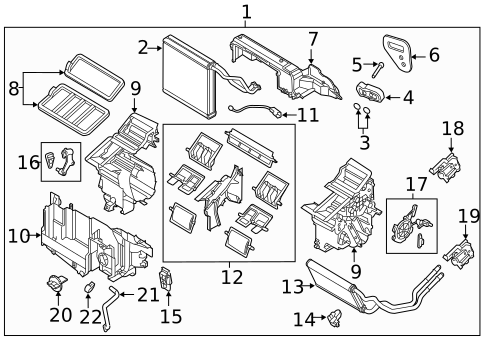

No.
Part # / Description / Price
Price
1
MSRP $1,171.37
$761.39
2
Evaporator Core Mazda
Mazda Notes: PARTS: Part included with AC & heater assembly.
Description: CX-5. Mazda6. Mazda3. With auto temp control, mexico built. From 05/10/2014. 2.2L diesel, with auto ac.
MSRP $736.62
$478.80
MSRP $736.62
$478.80
3
MSRP $5.12
$3.33
8
Seal Kit Mazda
Mazda Notes: PARTS: Part included with AC & heater assembly.
Description: Without auto temp control. 2.2L diesel, without auto ac.
MSRP $43.68
$28.39
MSRP $43.68
$28.39
12
Damper Assembly Mazda
Mazda Notes: PARTS: Part included with AC & heater assembly.
Description: 2.5L turbo, with auto ac. 2.2L diesel, with auto ac.
MSRP $92.59
$60.18
MSRP $92.59
$60.18
13
Heater Core Mazda
Mazda Notes: PARTS: Part included with AC & heater assembly.
Description: CX-5. 2.5L turbo, with auto ac. With manual ac. 2.2L diesel, with auto ac.
MSRP $684.08
$444.65
MSRP $684.08
$444.65
14
Heater Core Clip Mazda
Mazda Notes: PARTS: Part included with AC & heater assembly.
Description: With auto temp control. 2.2L diesel, with auto ac.
MSRP $14.86
$9.66
MSRP $14.86
$9.66
15
Cover Plate Mazda
Mazda Notes: PARTS: Part included with AC & heater assembly.
Description: Without auto temp control. With manual ac. 2.5L turbo, with auto ac. 2.2L diesel, with auto ac.
MSRP $19.77
$12.85
MSRP $19.77
$12.85
16
Actuator Mazda
Mazda Positions: Right
Notes: PARTS: Part included with AC & heater assembly.
Description: CX-5. Right. Mazda3. Mazda6. No.2. 2.5L turbo, without auto ac, temperature. Temp, without auto air. With atc. 2.5L non turbo with auto ac. 2.2L diesel, without auto ac, temperature.
MSRP $100.70
$65.46
MSRP $100.70
$65.46
17
Actuator Mazda
Mazda Positions: Left
Notes: PARTS: Part included with AC & heater assembly.
Description: CX-5. Left. Mazda3. Mazda6. No.1. Temp, with auto air. Without atc. 2.2L diesel, with auto ac, temperature.
MSRP $97.76
$63.54
MSRP $97.76
$63.54
18
Actuator Link Mazda
Mazda Positions: Right
Notes: PARTS: Part included with AC & heater assembly.
Description: Temp, without auto temp. 2.2L diesel, with auto ac, temperature.
MSRP $33.51
$21.78
MSRP $33.51
$21.78
19
Link Assembly Mazda
Mazda Notes: PARTS: Part included with AC & heater assembly.
Description: 2.5L turbo, with auto ac, mode. 2.2L diesel, with auto ac, mode.
MSRP $47.75
$31.04
MSRP $47.75
$31.04
20
Temp Door Actuator Mazda
Mazda Notes: PARTS: Part included with AC & heater assembly.
Description: CX-5. Mazda6. Mazda3. With auto temp control, mode. 2.2L diesel, without auto ac, mode.
MSRP $100.70
$65.46
MSRP $100.70
$65.46
21
Blower Motor Resistor Mazda
Mazda Notes: PARTS: Part included with AC & heater assembly.
Description: CX-5. 2.5L turbo, with auto ac. 2.2L diesel, without auto ac.
MSRP $188.37
$122.44
MSRP $188.37
$122.44
22
Drain Hose Mazda
Mazda Notes: PARTS: Part included with AC & heater assembly.
Description: 2.5L turbo, with auto ac. 2.2L diesel, with auto ac.
MSRP $13.03
$8.47
MSRP $13.03
$8.47
