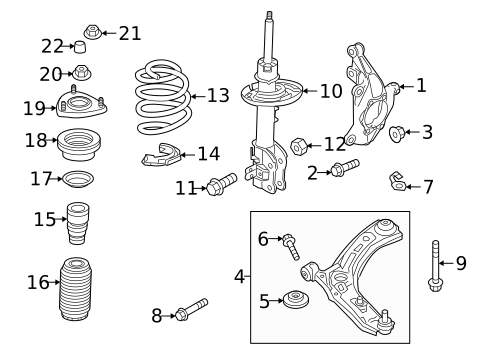

Suspension, Springs & Related Components for 2024 Mazda 3
No.
Part # / Description / Price
Price
1
Steering Knuckle
Mazda
Mazda Positions: Right
Description: Mazda3. Right. Without turbo. Mexico Built Vehicle. Japan Built.
MSRP $290.31
$203.22
MSRP $290.31
$203.22
1
Steering Knuckle Mazda
Mazda Positions: Left
Description: Mazda3. Left. Without turbo. Japan Built. Mexico Built Vehicle.
MSRP $289.96
$202.97
MSRP $289.96
$202.97
2
Lower Control Arm Mount Bolt Mazda
Mazda Positions: Left
Description: Japan built. Lower.
MSRP $5.55
$3.89
MSRP $5.55
$3.89
3
Stabilizer Link Nut Mazda
Mazda Positions: Left
Description: Japan built. Mexico built. Upper. Lower. 2.5L turbo. Without awd. Fwd. 2.2L diesel.
MSRP $1.40
$0.98
MSRP $1.40
$0.98
4
Suspension Control Arm Mazda
Mazda Positions: Right
Description: Exc.Mexico Built. Incl.Ball Joint & Bushings. Mazda3. Right. From 03/27/2020. Japan built. Without turbo.
MSRP $681.16
$476.81
MSRP $681.16
$476.81
4
Suspension Control Arm Mazda
Mazda Positions: Left
Description: Exc.Mexico Built. Incl.Ball Joint & Bushings. Mazda3. Left. From 03/27/2020. Japan built. Without turbo.
MSRP $698.61
$489.03
MSRP $698.61
$489.03
4
Lower Control Arm Mazda
Mazda Positions: Front right
Description: Incl.Ball Joint & Bushings. Mazda3. Right. Mexico built. Fwd. To 01/15/2020. Awd. Without turbo.
MSRP $250.08
$175.06
MSRP $250.08
$175.06
4
Lower Control Arm Mazda
Mazda Positions: Front left
Description: Mazda3. Left. Incl.Ball Joint & Bushings. Mexico built. Awd. Without turbo. To 01/15/2020. Fwd. From 01/15/2020.
MSRP $169.54
$118.68
MSRP $169.54
$118.68
6
Lower Control Arm Mount Bolt Mazda
Mazda Positions: Left
Notes: PARTS: Part included with lower control arm.
Description: Engine cradle,bolt. Japan built. Mexico built. Outer. 2.5L turbo. 2.2L diesel.
MSRP $14.65
$10.26
MSRP $14.65
$10.26
8
Rear Lower Control Arm Bolt Mazda
Mazda Positions: Right
Description: Japan built. Mexico built. #1.
MSRP $8.23
$5.76
MSRP $8.23
$5.76
10
Suspension Strut Mazda
Mazda Positions: Right
Notes: PARTS: Order by marks on spring, or spring code. Part has related components that cannot be reused/reinstalled; bolt, nut and top nut.
Description: Mazda3. Right. Without turbo. With cyl deactivation. Exc.Mexico Built. Mexico Built Vehicle. From 11/07/2019. To 11/07/2019.
MSRP $242.79
$169.95
MSRP $242.79
$169.95
10
Suspension Strut Mazda
Mazda Positions: Left
Notes: PARTS: Order by marks on spring, or spring code. Part has related components that cannot be reused/reinstalled; bolt, nut and top nut.
Description: Mazda3. Left. Japan built. Without turbo. With cyl deactivation. Exc.Mexico Built. From 11/07/2019. Mexico Built Vehicle. To 11/07/2019.
MSRP $246.70
$172.69
MSRP $246.70
$172.69
11
Strut Bolt Mazda
Mazda Positions: Left
Notes: PARTS: Part cannot be reused/reinstalled.
Description: Japan built. Upper.
MSRP $4.88
$3.42
MSRP $4.88
$3.42
12
Strut Nut Mazda
Mazda Positions: Right
Notes: PARTS: Part cannot be reused/reinstalled.
Description: Mexico built. Japan built. Upper.
MSRP $5.95
$4.17
MSRP $5.95
$4.17
13
Coil Spring Mazda
Mazda Positions: Left
Notes: PARTS: Order by marks on spring, or spring code. Part has related components that cannot be reused/reinstalled; bolt, nut and top nut.
Description: Exc.Mexico Built. Marked White. Mazda3. Dark blue mark. Type 1. Japan built, code 1.
MSRP $128.92
$90.24
MSRP $128.92
$90.24
13
Coil Spring Mazda
Mazda Positions: Left
Notes: PARTS: Order by marks on spring, or spring code. Part has related components that cannot be reused/reinstalled; bolt, nut and top nut.
Description: Exc.Mexico Built. Marked Pink. Mazda3. Orange mark. Type 2. Japan built, code 2.
MSRP $135.60
$94.92
MSRP $135.60
$94.92
13
Coil Spring Mazda
Mazda Positions: Left
Notes: PARTS: Order by marks on spring, or spring code. Part has related components that cannot be reused/reinstalled; bolt, nut and top nut.
Description: Exc.Mexico Built. Marked Light Green. Mazda3. Red mark. Type 3. Japan built, code 3.
MSRP $137.34
$96.14
MSRP $137.34
$96.14
13
Coil Spring Mazda
Mazda Positions: Left
Notes: PARTS: Order by marks on spring, or spring code. Part has related components that cannot be reused/reinstalled; bolt, nut and top nut.
Description: Exc.Mexico Built. Marked Purple. Mazda3. White mark. Type 4. Japan built, code 4.
MSRP $147.17
$103.02
MSRP $147.17
$103.02
13
Coil Spring Mazda
Mazda Positions: Left
Notes: PARTS: Order by marks on spring, or spring code. Part has related components that cannot be reused/reinstalled; bolt, nut and top nut.
Description: Exc.Mexico Built. Marked Light Blue. Type 5. Japan built, code 5.
MSRP $150.73
$105.51
MSRP $150.73
$105.51
13
Coil Spring Mazda
Mazda Positions: Left
Notes: PARTS: Order by marks on spring, or spring code. Part has related components that cannot be reused/reinstalled; bolt, nut and top nut.
Description: Exc.Mexico Built. Marked Red. Type 6. Japan built, code 6.
MSRP $154.58
$108.21
MSRP $154.58
$108.21
13
Coil Spring Mazda
Mazda Positions: Left
Notes: PARTS: Order by marks on spring, or spring code. Part has related components that cannot be reused/reinstalled; bolt, nut and top nut.
Description: Exc.Mexico Built. Blue Mark. Type 7. Japan built, code 7.
MSRP $161.36
$112.95
MSRP $161.36
$112.95
13
Coil Spring Mazda
Mazda Positions: Left
Notes: PARTS: Order by marks on spring, or spring code. Part has related components that cannot be reused/reinstalled; bolt, nut and top nut.
Description: Exc.Mexico Built. Marked Green. Type 8. Japan built, code 8.
MSRP $164.71
$115.30
MSRP $164.71
$115.30
13
Coil Spring Mazda
Mazda Positions: Left
Notes: PARTS: Order by marks on spring, or spring code. Part has related components that cannot be reused/reinstalled; bolt, nut and top nut.
Description: Exc.Mexico Built. Marked Gray. Mazda3. Yellow mark. Type 9. Japan built, code 9.
MSRP $160.67
$112.47
MSRP $160.67
$112.47
13
Coil Spring Mazda
Mazda Positions: Front
Description: Mazda3. Red mark. Mexico Built Vehicle. Type 3. Marked Light Green.
MSRP $127.76
$89.43
MSRP $127.76
$89.43
13
Coil Spring Mazda
Mazda Positions: Front
Description: Mazda3. White mark. Mexico Built Vehicle. Type 4. Marked Purple.
MSRP $192.56
$134.79
MSRP $192.56
$134.79
13
Coil Spring Mazda
Mazda Positions: Front
Description: Mazda3. Yellow mark. Mexico Built Vehicle. Type 5. Marked Light Blue.
MSRP $189.14
$132.40
MSRP $189.14
$132.40
13
Coil Spring Mazda
Mazda Positions: Front
Description: Mexico Built Vehicle. Type 6. Marked Red.
MSRP $180.54
$126.38
MSRP $180.54
$126.38
13
Coil Spring Mazda
Mazda Positions: Front
Description: Mexico Built Vehicle. Type 7. Blue Mark.
MSRP $49.52
$34.66
MSRP $49.52
$34.66
14
Lower Seat Mazda
Mazda Positions: Front lower
Description: Japan built. Mexico built. Mazda3. Lower. CX-30.
MSRP $12.92
$9.04
MSRP $12.92
$9.04
15
Bumper Mazda
Mazda Positions: Front
Description: Mexico built. Mazda3. CX-30. Japan built.
MSRP $14.26
$9.98
MSRP $14.26
$9.98
16
Dust Cover Mazda
Mazda Positions: Left
Description: Japan built. Mexico built. Mazda3. CX-30.
MSRP $26.10
$18.27
MSRP $26.10
$18.27
17
MSRP $32.44
$22.71
18
Bearing Mazda
Mazda Positions: Right
Description: Japan built. Mexico built. Mazda3. CX-30.
MSRP $52.60
$36.82
MSRP $52.60
$36.82
19
Strut Mount Mazda
Mazda Positions: Left
Description: Japan built. Exc.Mexico Built. Mazda3.
MSRP $70.29
$49.20
MSRP $70.29
$49.20
20
Suspension Strut Mount Reinforcement Nut Mazda
Mazda Positions: Left
Notes: PARTS: Part cannot be reused/reinstalled.
Description: Mexico built. Japan built. Awd. 2.5L turbo. 2.2L diesel.
MSRP $3.21
$2.25
MSRP $3.21
$2.25
21
Top Nut Mazda
Mazda Positions: Left
Notes: PARTS: Part cannot be reused/reinstalled.
Description: Japan built.
MSRP $7.24
$5.07
MSRP $7.24
$5.07
22
MSRP $1.84
$1.29
